WINKHAUS SWN top hinge on the frame for PVC windows for FLEX, AUTOPILOT fittings.

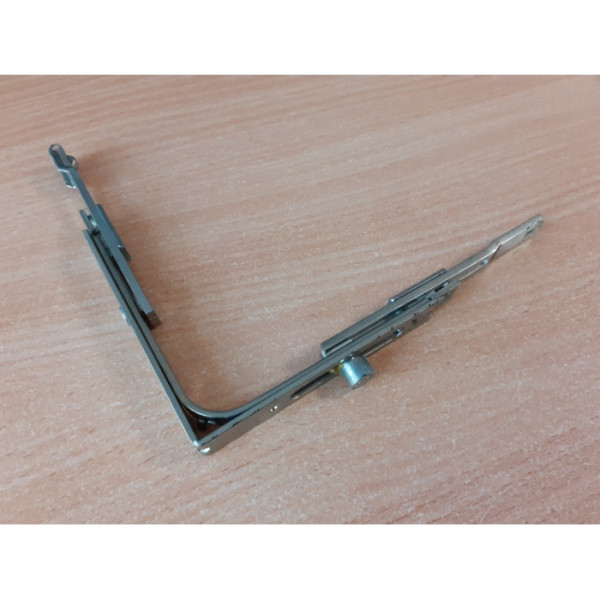

Angle ER 3-0

Model of fittings WINKHAUS AUTOPILOT

Used on narrow sashes with upper rail OR 600

WINKHAUS ACTIVPILOT SK1.20-13 RS Bracket

Article 2842578.

- subdivided into right and left

- adjustment in the horizontal plane (+ 3.5 / -2.0 mm)

GAMA 2300-3 D50 WINKHAUS ACTIVPILOT lock

Dormas 50 mm

Blockade MK.U.500-1

Brand WINKHAUS

proPilot system

MK.U symbol

WINKHAUS XR 04 N 60/45 core with a "butterfly"

А-60

В-45

WSK 61 RC SL WINKHAUS door group counter part

WINKHAUS STV-FG 1660/45 92/8 M2 RS SL multi-point lock, handle locking.

, D45, 92 system.

WINKHAUS PROPILOT EL.K.U.3-3 the lower hinge for the sash windows made of PVC

WINKHAUS ACTIVPILOT SK2.20-13 RS Bracket

Article 2842586.

Supplied without plastic lining.

SK.U.1.21-13. bracket right

Manufacturer WINKHAUS

proPilot system

Opening side Right

By hinges Visible

Marking (fastening axis) 13

Window material PVC

WINKHAUS FK-F reinforced loop at the lower sash++ plastic cover of the "old" model.

Art.1898617

Product type: Corner ER 15 WK AUTOPLOT

Window material: aluminum wood plastic steel

Mounting groove of the door leaf: Mounting groove 16 mm

Installation side: DIN left, DIN right

Gap of the cut - threshold: -1.00 mm

Mounting position: Bottom hinge Vertical frame at the top Vertical frame at the bottom

Type of fixing point: Eccentric roller pin WK

Number of locking points: 2.00

WSK 226 SL WINKHAUS ( TROCAL) return part

WINKHAUS XR 04 N 40/50 core with a "butterfly"

А-40

В-50

Extension of the WINKHAUS MVR/V 50-1 lock, fittings model AUTOPILOT
