WINKHAUS GAM.800 castle.

Model fitting WINKHAUS ACTIVPILOT.

SK.U.1.21-13. bracket right

Manufacturer WINKHAUS

proPilot system

Opening side Right

By hinges Visible

Marking (fastening axis) 13

Window material PVC

Extension of the WINKHAUS MK.750-1 blockade, fittings model ACTIVPILOT

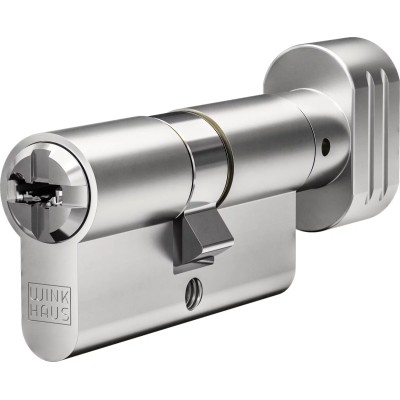

WINKHAUS XR 04 N 40/40 core with a "butterfly"

А-40

В-40

WINKHAUS GAM.1050-1 lock. With small DORMAS cassette - 7.5 mm

Model of fittings ACTIVPILOT, type - burglar-proof, has 1 burglar-proof 8-sided "mushrooms" with the ability to adjust the pressure manually.

WINKHAUS FWV RS reinforced loop at the lower sash (Art. 1945188), right.

WINKHAUS ACTIVPILOT FL.K.20-6-20 loop at the lower sash.

Used in combination with the lower frame loop EL.K.6-3-16 WINKHAUS ACTIVPILOT Loop (ref:EL.K.6-3-16)

Art. 4928429

Fixing plate for STV fitting (2 pieces) U-shaped faceplate 26 mm, option -76, SKG certified, MV2, matt chrome plated (silver)

Set.

WINKHAUS hinge KB.K. 20-13

Bar width 16 mm

Fixed in the fitting groove with latches, maximum sash weight 80 kg

Installed with bracket loop SL.KS

WINKHAUS AUTOPILOT counter part for SL bolt

For recessing into the threshold or upper lintel with a movable button on a spring for fixing the bolt.

WINKHAUS T.13/3 microventilation

Art. 4937780

WINKHAUS ACTIVPILOT SK1.20-13 RS Bracket

Article 2842578.

- subdivided into right and left

- adjustment in the horizontal plane (+ 3.5 / -2.0 mm)

The sash rotation limiter at a certain angle makes it possible to open at an angle of up to 90 degrees.

Does not depend on the type of fittings.

The minimum rebate size (horizontal length of the fitting groove) of the sash is 460 mm.

This keywind operated Trulock STV-F 2070 M2 latch & deadbolt multipoint lock system by Winkhaus features a 20mm radius faceplate with 92mm centres and 2 hooks. It is available handed as left  hand in a choice of DORMAS 55 and is suitable for use on composite and timber doors.

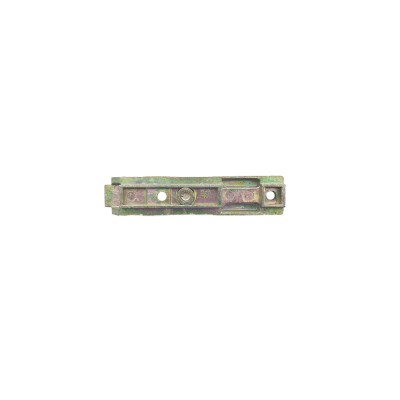

WSK TRK Universal reply part

Product name SK.U.1.20-13. proPilot bracket left

Manufacturer WINKHAUS

proPilot system

Opening side Left

Marking (mounting axis) 13

Window material PVC
