WINKHAUS STV-F 1660/30 92/8 R4 SL multi-point lock, core locking.

This keywind operated Trulock STV-F 2070 M2 latch & deadbolt multipoint lock system by Winkhaus features a 20mm radius faceplate with 92mm centres and 2 hooks. It is available handed as left  hand in a choice of DORMAS 55 and is suitable for use on composite and timber doors.

WINKHAUS GAM.1050-1 lock. With small DORMAS cassette - 7.5 mm

Model of fittings ACTIVPILOT, type - burglar-proof, has 1 burglar-proof 8-sided "mushrooms" with the ability to adjust the pressure manually.

The sash rotation limiter at a certain angle makes it possible to open at an angle of up to 90 degrees.

Does not depend on the type of fittings.

The minimum rebate size (horizontal length of the fitting groove) of the sash is 460 mm.

WINKHAUS STV-FG 1660/45 92/8 M2 RS SL multi-point lock, handle locking.

, D55, 92 system.

WINKHAUS SBK.K. 60 universal anti-theft bracket for fittings model WINKHAUS ACTIVPILOT.

Art. 2861584.

Set: universal balcony latch, 2 formteil, handle PS plastic, white.

If the PVC profile is unknown, formteyli adjusted at the place of the customer.

For wooden profiles (EUROFALTZ and EURONUT) formtailis are not required.

WINKHAUS ACTIVPILOT EL.K.6-3-16 the lower hinge for the sash windows made of PVC

WINKHAUS STV-F 1660/35 92/8 R4 SL multi-point lock, core locking

WINKHAUS GAM.1400-2 lock. With small DORMAS cassette - 7.5 mm

Model of fittings ACTIVPILOT, type - burglar-proof, has 2 burglar-proof 8-sided "mushrooms" with the ability to adjust the pressure manually.

Corner transmission of Wink Haus fittings (Winkhaus) proPilot series (pro pilot) with one mushroom-shaped trunnion and one standard.

The corner switch is designed to ensure the transmission of movement from the movable part of the tilt-and-turn lock through the sash corner to the subsequent parts of the perimeter trim.

It is installed on plastic (PVC) windows and balcony doors exclusively with WinkHaus fittings proPilot series.

With an additional mushroom-shaped pin that fixes the sash in the tilt.

Adjustable sash pressure to the frame +/- 0.8 mm.

Size 159x159 mm.

Universal element - for right and left opening.

S.U.13-4 WINKHAUS PROPILOT vertical swing-out hook

Set of universal balcony latch, 2 mounting plastic molds, metal C-handle, unpainted.

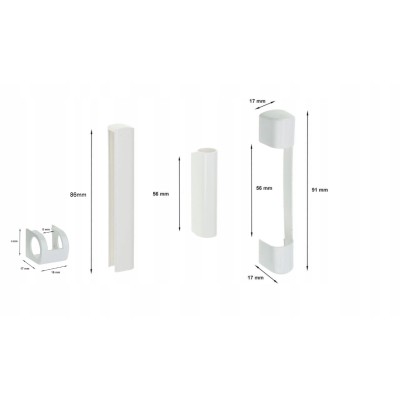

Set of lining for hinges WINKHAUS (FLEX,PILOT,AUTOPILOT), white, 4 psc.

The Winkhaus DS.24 child lock (Germany) allows you to restrict the opening of the sash in the swing position, but it does not limit the operation of the sash in the ventilation mode.

The appearance of the window does not deteriorate, since the lock is installed by cutting into the sash. Locking with a key provides protection from children and increases the security of windows from breaking.

WINKHAUS STV-F 1660/35 92/8 M2 LS SL Multipoint locking of the handle - you turn the knob up to 45 degrees is a movement of the locking elements.

The final closing of the core is made.
