WINKHAUS GAM.800 castle.

Model fitting WINKHAUS ACTIVPILOT.

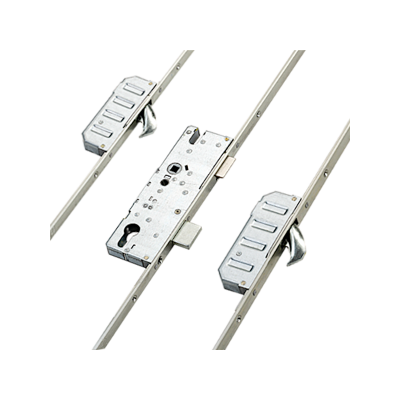

WINKHAUS STV-F 1660/45 92/8 M2 RS SL multi-point lock from the handle - when the handle is turned upwards by 45 degrees, the locking elements move.

The final locking is performed by the core.

Product type: Corner ER 15 WK AUTOPLOT

Window material: aluminum wood plastic steel

Mounting groove of the door leaf: Mounting groove 16 mm

Installation side: DIN left, DIN right

Gap of the cut - threshold: -1.00 mm

Mounting position: Bottom hinge Vertical frame at the top Vertical frame at the bottom

Type of fixing point: Eccentric roller pin WK

Number of locking points: 2.00

Corner transmission of Wink Haus fittings (Winkhaus) proPilot series (pro pilot) with one mushroom-shaped trunnion and one standard.

The corner switch is designed to ensure the transmission of movement from the movable part of the tilt-and-turn lock through the sash corner to the subsequent parts of the perimeter trim.

It is installed on plastic (PVC) windows and balcony doors exclusively with WinkHaus fittings proPilot series.

With an additional mushroom-shaped pin that fixes the sash in the tilt.

Adjustable sash pressure to the frame +/- 0.8 mm.

Size 159x159 mm.

Universal element - for right and left opening.

MSL 4-step tilt locking, kit.

GRM is used with locks (hardware model WINKHAUS AUTOPILOT).

Hinge WINKHAUS ACTIVPILOT EL.K.SE.152. RS (right)

Art. 4938496.

By order.

The set includes 4 pieces, a complete set, white color. Suitable only for the WINKHAUS ProPilot fittings model.

HAUTAU DUOPORT SK 100/160 RS set, right

Trolleys for sliding doors.

Fixing plate for STV fitting (2 pieces) U-shaped faceplate 26 mm, option -76, SKG certified, MV2, matt chrome plated (silver)

Set.

WINKHAUS STV-F 2060/45 92/8 R4 SL multi-point lock, core locking.

Door height 1800-2000mm, R4- 4 pressure drums, D45, 92 system.

WINKHAUS ACTIVPILOT OS2.800 SL

Model fitting ACTIVPILOT.

WINKHAUS STV-FG 1660/45 92/8 RT 4 SL multi-point lock, handle locking.

R4- 4 clamps, 2 rollers and 2 anti-burglar, D45, 92 system.

This Trulock STV-F 2070 M2 key operated latch and deadbolt lock system from Winkhaus has a 20mm radius face plate with 92mm centres and 2 hooks. It is available in a right hand version with a choice of DORMAS 55 dimensions and is suitable for use on composite and timber doors.

HAUTAU DUOPORT SK 100/160 LS set, left

Trolleys for sliding doors.

WINKHAUS ACTIVPILOT SK1.20-13 LS Bracket

Article 2844101.

- subdivided into right and left

- adjustment in the horizontal plane (+ 3.5 / -2.0 mm)

WINKHAUS AUTOPILOT counter part for SL bolt

For recessing into the threshold or upper lintel with a movable button on a spring for fixing the bolt.
