GM.U.1750-2.ZN WINKHAUS PROPILOT (FFH 1400-1750) lock
- Write a review
€28.40

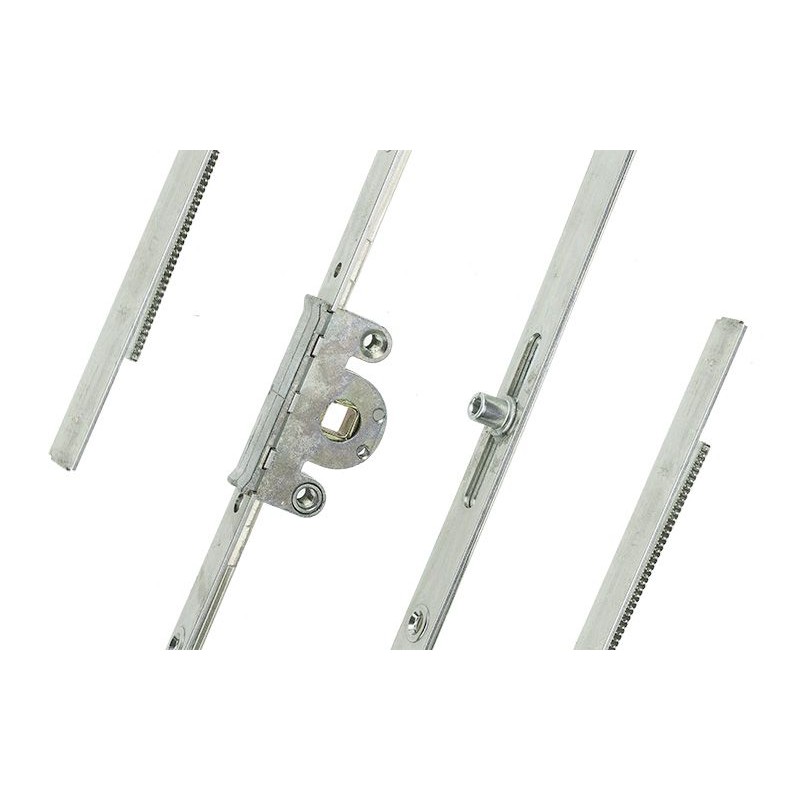

GM.U.1750-2.ZN WINKHAUS PROPILOT (FFH 1400-1750) lock
GM.U.ZN Lock
with adjustable handle height
metal cassette (ZnAl)
universal – suitable for left and right windows
fixing plate width: 16 mm
Door leaf pressure adjustment to frame +/- 0.8 mm
Option to install an FS.U handle rotation lock
The locking stroke of approximately 37 mm is achieved by rotating the handle 180°.
locked in the middle position (open position).
The handle is secured with M5 x ...DIN 965 screws.
Distance between the holes in the handle base: 43 mm.
Tight-fitting connection of the fastening elements (without connecting plates)
Distance from the pin axis to the end of the bolt: 15.5 mm
5035793
