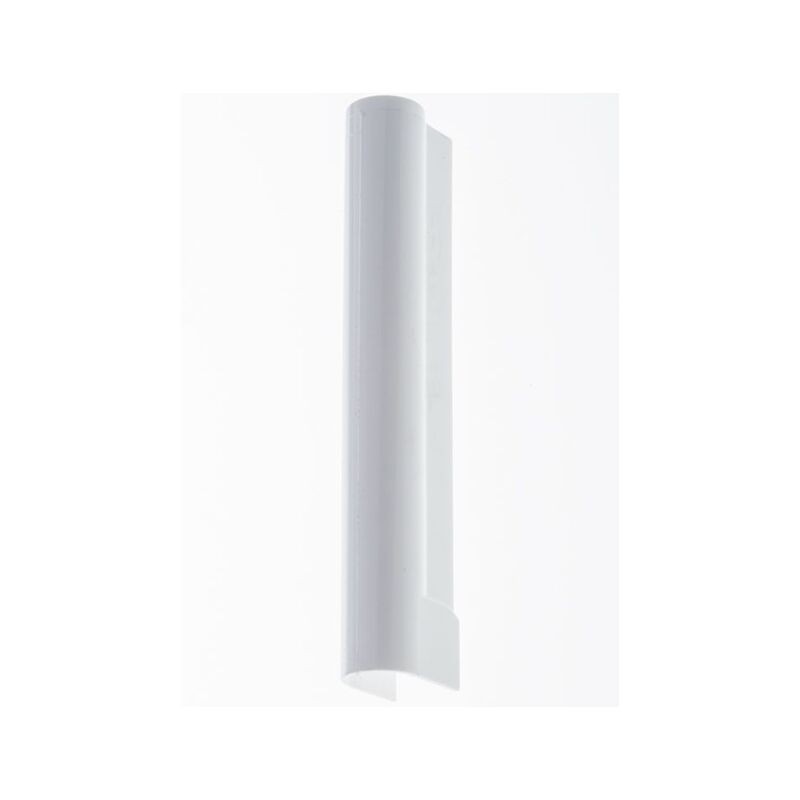

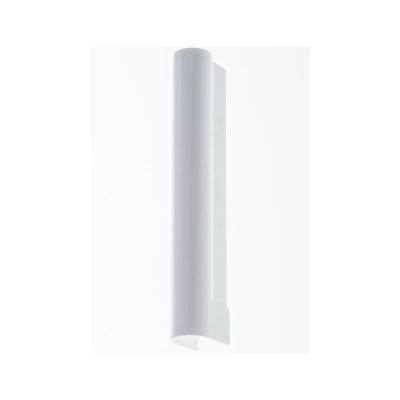

WINKHAUS AUTOPILOT ESV the lower hinge for the sash windows made of PVC

NB! All types of WINKHAUS fittings locks model AUTOPILOT under the brand GRM. GRMA, GRF

Product type: Corner ER 15 WK AUTOPLOT

Window material: aluminum wood plastic steel

Mounting groove of the door leaf: Mounting groove 16 mm

Installation side: DIN left, DIN right

Gap of the cut - threshold: -1.00 mm

Mounting position: Bottom hinge Vertical frame at the top Vertical frame at the bottom

Type of fixing point: Eccentric roller pin WK

Number of locking points: 2.00

GAMA 2300-3 D50 WINKHAUS ACTIVPILOT lock

Dormas 50 mm

The Winkhaus DS.24 child lock (Germany) allows you to restrict the opening of the sash in the swing position, but it does not limit the operation of the sash in the ventilation mode.

The appearance of the window does not deteriorate, since the lock is installed by cutting into the sash. Locking with a key provides protection from children and increases the security of windows from breaking.

Door height 1600-2000mm, R4- 4 pressure drums, D45, 92 system.

Multi-point lock, closing from the handle.

WINKHAUS ACTIVPILOT SK2.20-13 RS Bracket

Article 2842586.

Supplied without plastic lining.

Set: universal balcony latch, 2 formteil, handle PS plastic, white.

If the PVC profile is unknown, formteyli adjusted at the place of the customer.

For wooden profiles (EUROFALTZ and EURONUT) formtailis are not required.

SL.K.U.3-3 WINKHAUS proPILOT top frame hinge

Visible additional clamp, metal, brown.

Set in fitting groove to further clamp hidden in the design of PVC, wood and aluminum.

WINKHAUS ACTIVPILOT HV-11 adjusting key

WINKHAUS K-SEF 1/105 LS anti-theft bracket, left, 9 system.

Art. 1154285

This Trulock STV-F 2070 M2 key operated latch and deadbolt lock system from Winkhaus has a 20mm radius face plate with 92mm centres and 2 hooks. It is available in a right hand version with a choice of DORMAS 55 dimensions and is suitable for use on composite and timber doors.

Corner transmission of Wink Haus fittings (Winkhaus) proPilot series (pro pilot) with one mushroom-shaped trunnion and one standard.

The corner switch is designed to ensure the transmission of movement from the movable part of the tilt-and-turn lock through the sash corner to the subsequent parts of the perimeter trim.

It is installed on plastic (PVC) windows and balcony doors exclusively with WinkHaus fittings proPilot series.

With an additional mushroom-shaped pin that fixes the sash in the tilt.

Adjustable sash pressure to the frame +/- 0.8 mm.

Size 159x159 mm.

Universal element - for right and left opening.

S.U.13-4 WINKHAUS PROPILOT vertical swing-out hook

WINKHAUS GAM.1800-2 lock. With small DORMAS cassette - 7.5 mm

Model of fittings ACTIVPILOT, type - burglar-proof, has 2 burglar-proof 8-sided "mushrooms" with the ability to adjust the pressure manually.

WINKHAUS ACTIVPILOT.SBA.H.9-18 response for profile Eurofaltz 18mm
