Technical features

Door Type: Wooden Doors

Lock Application Type :Mortise Lock

Operation Type: Cylinder Operated

Locking Points :Single Point

Locking Type :European Profile Cylinder

Closing Mechanism: Step Mechanical

Locking Elements: Deadbolt & Latch

Number of Levers: 1

Deadbolt Operation: Standard

Internal Parts with Anti Corrosion Treatment: Yes

Reversible Latch: Yes

Compatible with Electric Strike :Yes

Made to order.

The Vorne mortise lock is designed for a metal-plastic door.

Center distance: 92 mm

Backset: 30 mm

Face plate height: 240 mm.

Face plate width: 16 mm.

Universal lock for lever handles for PVC doors, strap 16mm, the system 92, D 25 mm, under eurocylinder.

The Vorne mortise lock is designed for a metal-plastic door.

Center distance: 92 mm

Backset: 35 mm

Face plate height: 240 mm.

Face plate width: 16 mm.

Castle magnetic LOB Z75MB, D50, 72 system under eurocylinder.

Mortise Lock with roller for PVC Doors.

D25, 92 system.

ANTI FIRE lock, D50 RS, right side, galvanized under eurocylinder norm CE 1488 2013

ICSA mortise lock for metal doors and aluminum, nickel, falling bolt, universal.

D35, strap width 24mm, 85 system.

Technical features

Patent Protection Yes

Door Type Wooden Doors

Lock Application Type Mortise Lock

Operation Type Cylinder Operated, Key Operated, Bathroom turn

Locking Points Single Point

Locking Type European Profile Cylinder, Bitted Key Lock, Bathroom Lock

Closing Mechanism Step Mechanical

Locking Elements Latch Only

Number of Levers 1

Deadbolt Operation Standard

Lock Handing Universal (Standard & Reverse)

Silent Latch Yes

Key Turns 1

Oil Channel Yes

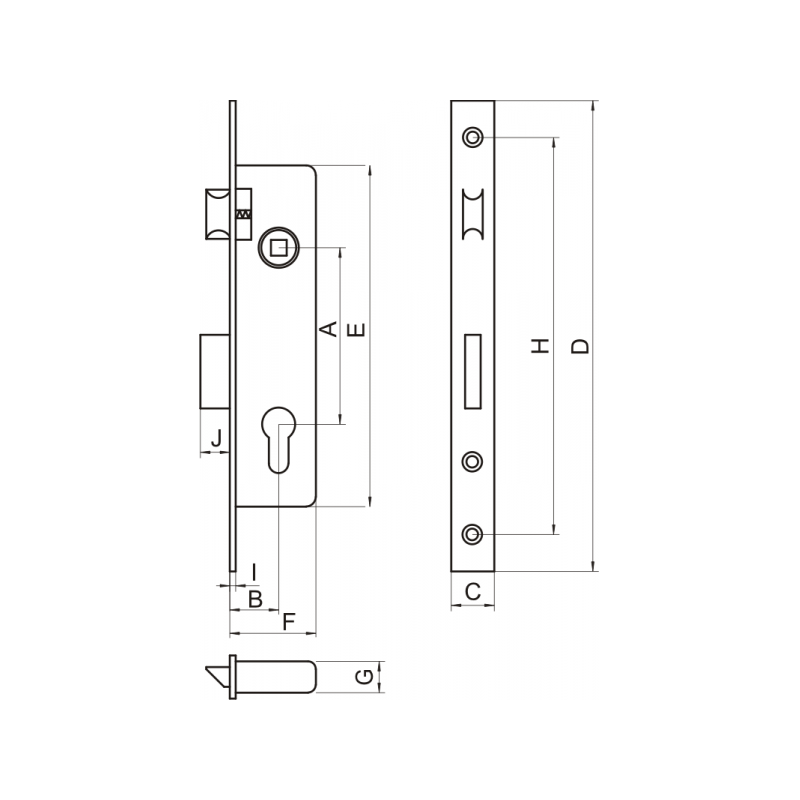

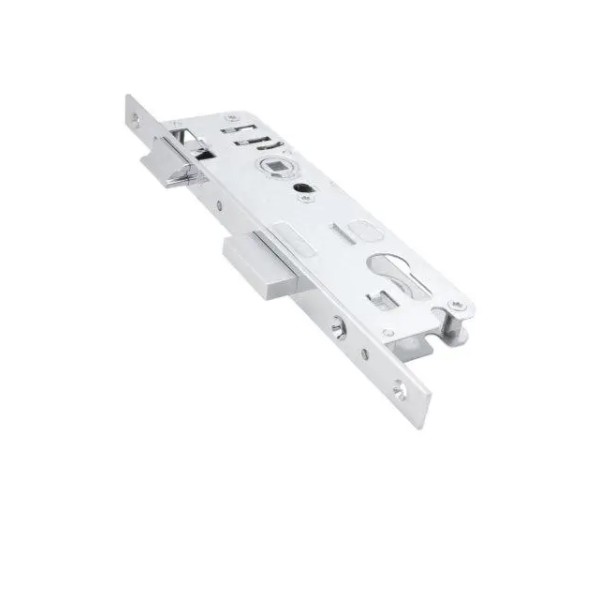

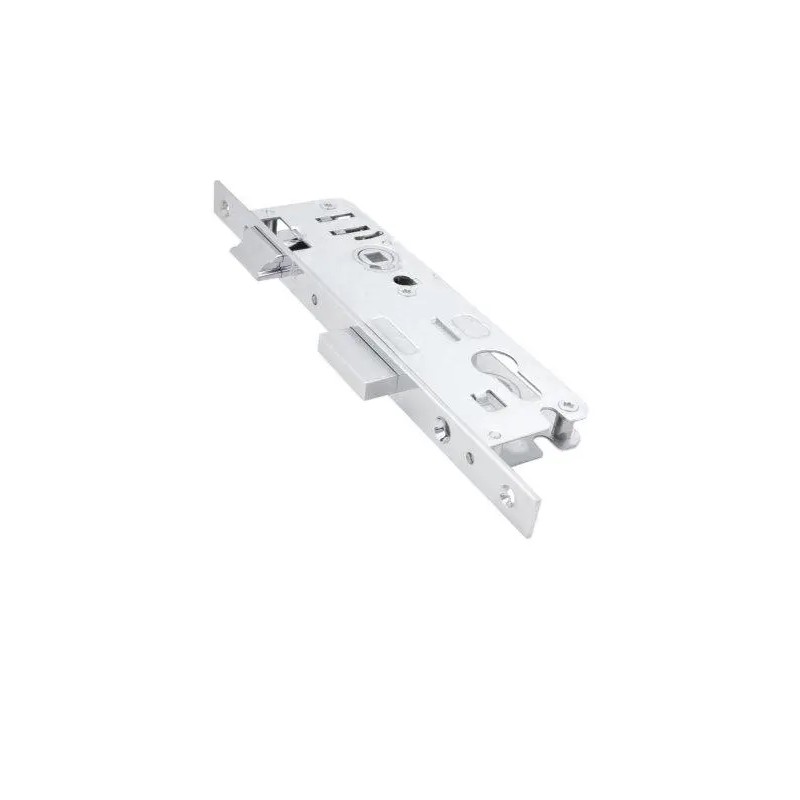

The Vorne mortise lock is designed for a metal-plastic door.

Center distance: 92 mm

Backset: 25 mm

Face plate height: 240 mm.

Face plate width: 16 mm.

GUBI mortise lock for AL doors, for Euro cylinder

D25, strip width 23 mm, 85 system

FUHR 2862 D40/16 R, door lock with roller

Can be used as an office lock without a handle or with handles (not through)

Bar width 16 mm, system 92, dormas 40, universal

FUHR 2862 D25/16 R, door lock with roller

Can be used as an office lock without a handle or with handles (not through)

Bar width 16 mm, system 92, dormas 25, universal

Universal lock for lever handles for metal and aluminum structures, suitable for gates, strap 22mm, the system 92, D 30 mm, under eurocylinder.

GUBI mortise lock for PVC doors, for Euro cylinder

D35, strip width 23 mm, 85 system

Universal lock for a push handle for metal and aluminum doors, 22 mm strip, system 92, D 30 mm, for a Euro cylinder.
