Multi-point lock-rail with handle control.

Multi-point locks-rails are designed for more reliable locking of doors made of profile structures, primarily metal-plastic. Non-slip locking points do not allow the door to be easily squeezed

Parameters

Rack length 2200 mm

Control From handle

Latch type Latch

Bar Yes

Center distance 92 mm

Backset 25 mm

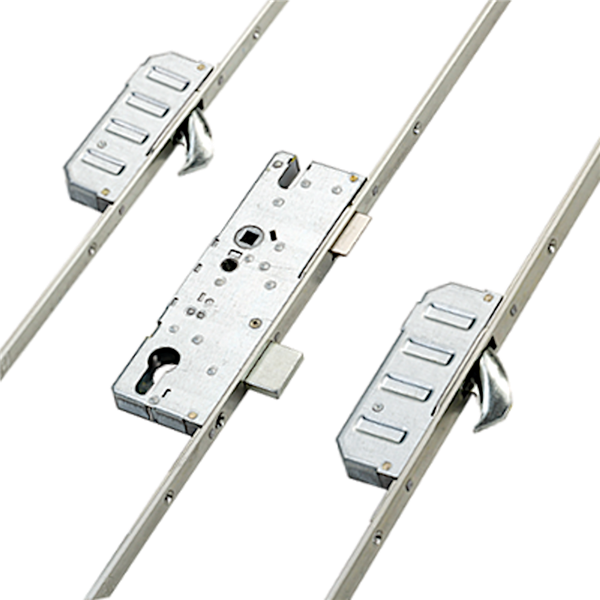

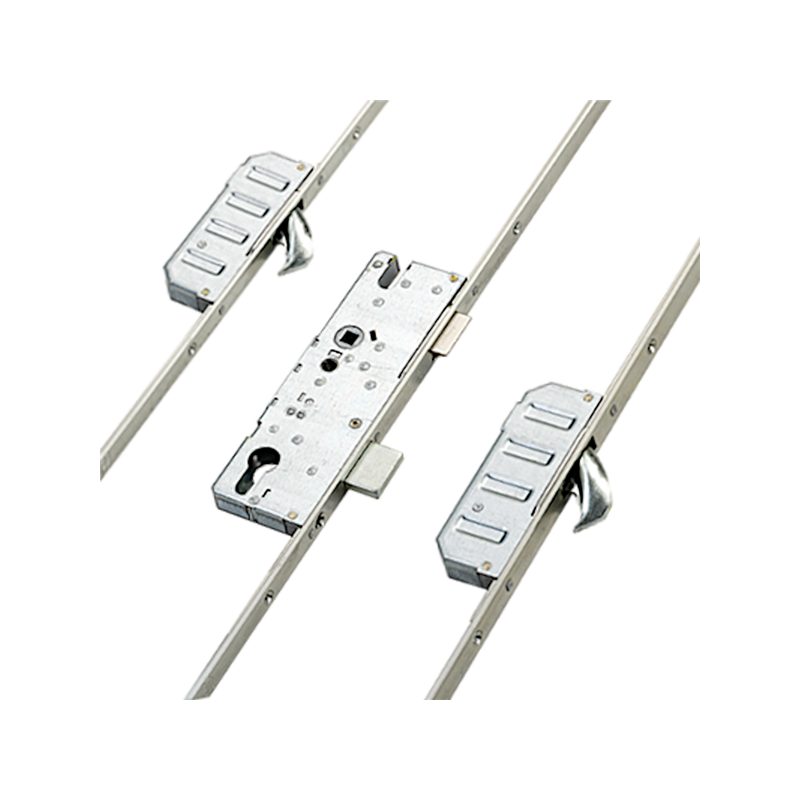

This Trulock STV-F 2070 M2 key operated latch and deadbolt lock system from Winkhaus has a 20mm radius face plate with 92mm centres and 2 hooks. It is available in a right hand version with a choice of DORMAS 55 dimensions and is suitable for use on composite and timber doors.

WINKHAUS STV-FG 1660/55 92/8 R4 SL multi-point lock, handle locking.

R4- 4 pressure drums, D55, 92 system.

WINKHAUS STV-F 2060/45 92/8 M2 LS SL multi-point lock from the handle - when the handle is turned upwards by 45 degrees, the locking elements move.

The final locking is performed by the core.
